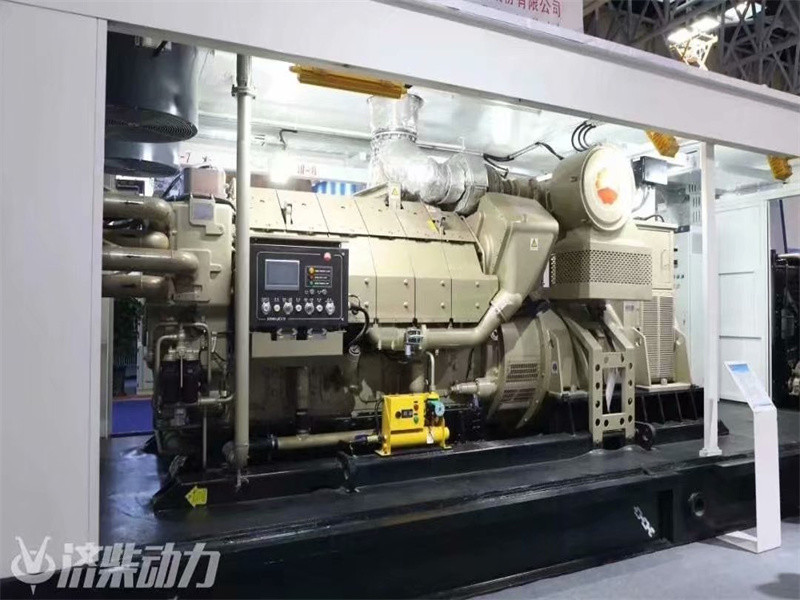

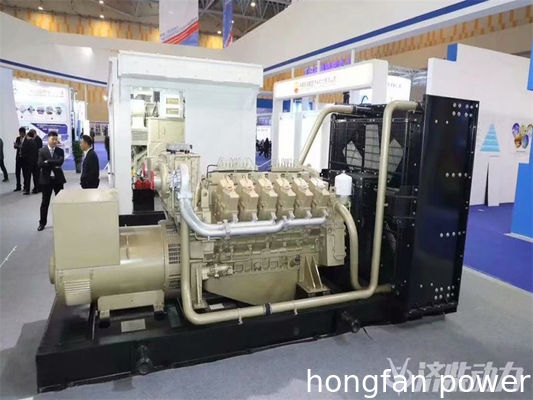

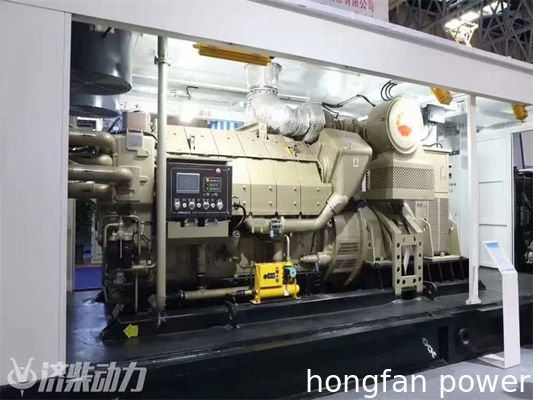

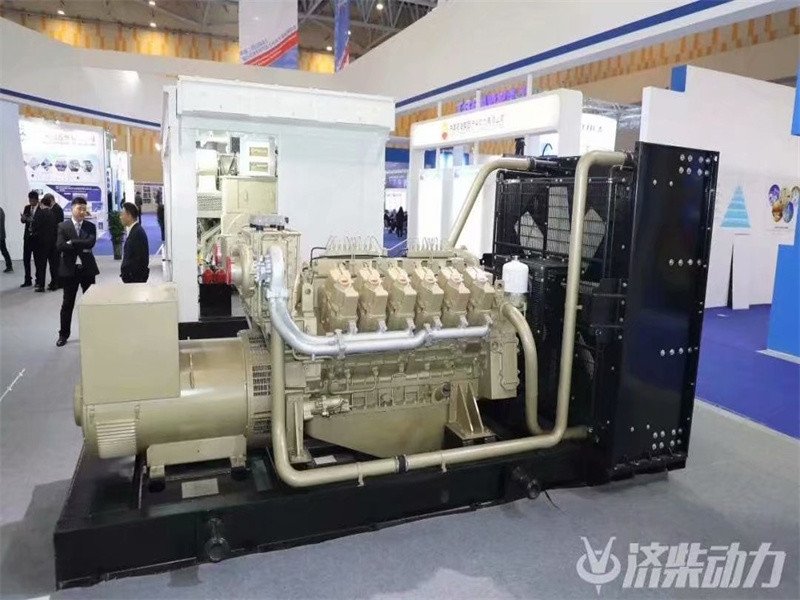

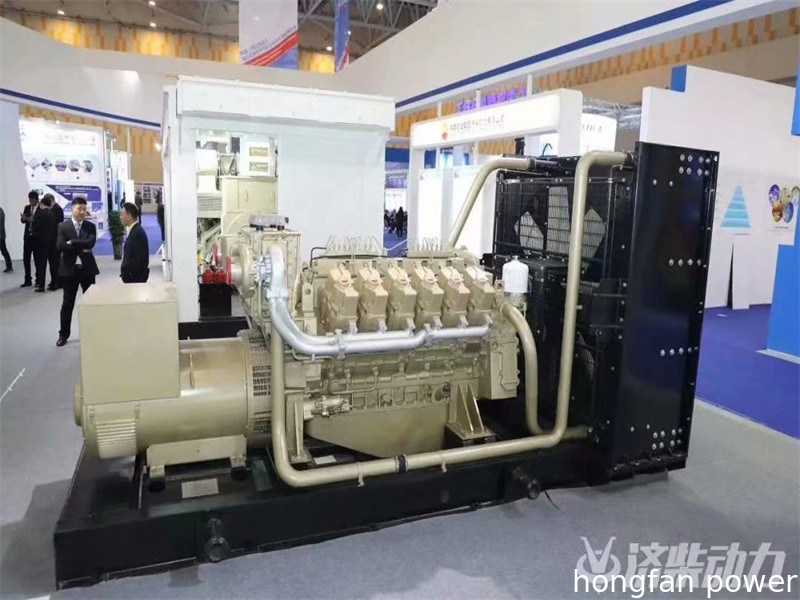

BL12V190ZL1 CNPC JICHAI drilling engine in Iran with the 1FC6 566-6&DSE8610

BL12V190ZL-1 Main Technical Specifications and Parameters

• Rated Power: 1200 kW

• Rated Speed: 1200 r/min

• Fuel Consumption Rate: ≤202 g/kW·h

• Lubricating Oil Consumption Rate: ≤1.0 g/kW·h

• Overall Dimensions (L×W×H): 2950 × 1980 × 2312 mm

• Net Weight: 9300 kg

• Number and Arrangement of Cylinders: 12 cylinders, 60° V-type arrangement

• Engine Type: Four-stroke, water-cooled, turbocharged and intercooled, direct injection combustion chamber

• Cylinder Bore: 190 mm

• Piston Stroke: 255 mm

• Total Displacement: 86.72 L

• Compression Ratio: 14.5:1

• Rotation Direction: Counterclockwise (facing the output end)

• Starting Method: Air motor or electric motor

• Lubrication Method: Pressure and splash lubrication

• Speed Regulation Mode: Hydraulic (or electro-hydraulic) governor, adjustable steady-state speed regulation rate from 0 to 5%

• Main Applications and Configuration: Long-stroke diesel engine, used as main or auxiliary power for drilling rigs and marine vessels

Engine Parameters – AL12V190ZL Series

• Model: AL12V190ZL-1

• Rated Power (kW): 1100 / 1200

• Rated Speed (r/min): 1000 / 1200

• Bore × Stroke (mm × mm): 190 × 255

• Number and Arrangement of Cylinders: 12 cylinders, V-type

• Fuel Consumption Rate (g/kW·h): ≤202 / ≤205
