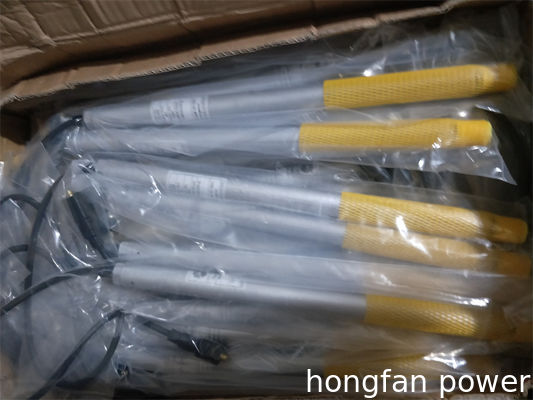

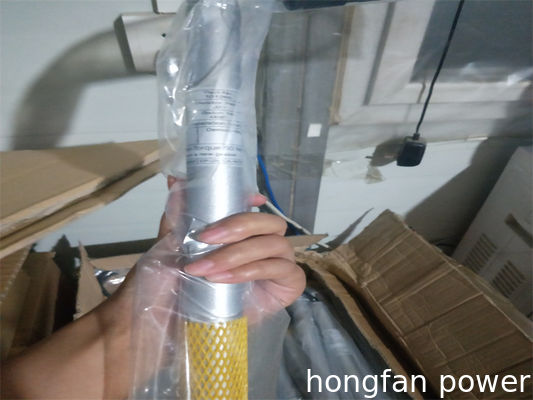

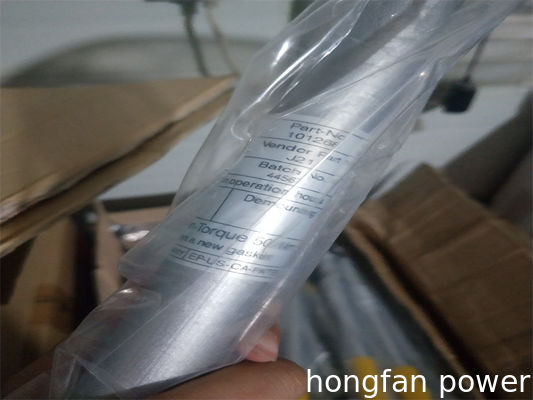

601T.90.20 Spark plug parts used in jichai H16V190 1000KW and L20V190 2000KW gas engine spare parts
| Lugar de origen | Porcelana |
|---|---|
| Nombre de la marca | jichai |
| Certificación | ce |
| Número de modelo | 601T.90.20 |
| Cantidad de orden mínima | 1 |
| Precio | 3478 |
| Detalles de empaquetado | Cajas de madera |
| Tiempo de entrega | 30 dias |
| Capacidad de la fuente | 200 piezas mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
Veloz: 0086 18588475571
Skype: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
Descripción de producto
INTRODUCTION
H16V190ZLT-2 outer mixing gas engine is developed by our company to meet the requirement of market. The whole engine is optimized by amending the shortages of the first gas engine generation. The power performance, fuel economy and reliability of this gas engine are improved a lot by adopting outer mixing mode, increasing compression ratio and boost ratio, enhancing swirl rat io, realizing lean -burnt by controlling air fuel ratio, using high-energy ignition, and etc.
This engine series is mainly used in generating by single en gine or several engines forming a power station. It also can be used as power of comp ressor, oil t ransfer pump, water in jection pump, and etc.
MAIN FEATURES
| Engine Design | Testing |
| - Designed by AVL, Austria | - Strict Inspection and Factory Test for Each Gen -set |
| - Intellectual Property belong to JCPC | - Start Performance Test |
| - Triaxiality Finite Element Analysis | - Load Test |
| - Longer Stro ke, More d isplacement | - Synchronization Test |
| - Low Speed (1200RPM), More Reliab le | - Safety System Test |
| - Advanced World Standard Performance | The Whole Equipment Supply |
| Generator | - Standard Scope of Supply |
| - Brushless Excitation | - Repairing Tools |
| -AVR | Easy Installation and Remove |
| - Better Insulation and Protection | - A ll Equip ment on Co mmon Skid Three -Point |
| Safety | Support |
| - Low Oil Pressure Auto Stop Protection | -Simple Installation Work |
| - Over Speed Auto Stop Protection | - High Strength Skid, for Hoisting and Removing. |
| - Exp losion Proof | Technical Support & Services |
| - High Coolant Temperature Alarm | - Technical Support and Training Service |
| - Low Coo lant Level Alarm | - 24/7 Technical Serv ice Tel Nu mber |
| - High Oil Temperature Alarm | - Rapid Spare Parts Supply |
| - Co mplete Electrical Protection | - After Sales Service for Generator Set Lifetime |
| - Emergency Stop Device |
| Model | 1000GF-T |
| Engine type | H16V190ZLT-2 |
| Alternator type | 1FC series (siemens technology) | ||
| Rated Power * | kW | 1000 | |
| Rated Speed | rp m | 1200 | |
| Rated Frequency | Hz | 60 | |
| Rated PF | 0.8 | ||
| Vo ltage Regulat ion | AVR | ||
| Weight | kg | 19500 | |
| Dimension | mm | 6500×2312×2777 | |
*Rating and fuel consumption based on ISO Standard conditions (Ambient temperature at 25 degree Centigrade, At mospheric pressure at 100kPa and Relative hu mid ity at 30%). Site rat ing and fuel consumption should amend according to relative standard (The table at right side for reference )
| Main Specification of Engine | |||
| Model of engine | H16V190ZLT-2 | ||
| Rated Power(kW) | 1150kW | ||
| Rated Speed(r/ min) | 1200 | ||
| No. and layout of cylinders | 16-cylinder,60°Vee | ||
| Type |
Four stroke, Water cooled, Direct in jection, Air-fuel ratio control, Spark plug ignition, Out mixing, Electrical control, Mixed after co mpressor, Turbocharged and after cooled. |
||
| Heat consumption | ≤9500kJ/kW·h | ||
| Specific oil consumption (g/kW.h) | ≤0.8 | ||
| Bore(mm) | 190 | ||
| Stroke (mm) | 215 | ||
| Total displacement (L) | 97.53 | ||
| Governor | Electronic Governor | ||
| Exhaust temperature (before turbo) | ≤700℃ | ||
| Starting mode | 24V DC electric starting motor | ||
| Direction of rotation | Counter-clockwise(facing to fly wheel) | ||
| Lubrication method | Pressure and splash lubrication | ||
| Hot water outlet temperature | <90℃ | ||
| Mid-cooler inlet water temperature | <45℃ | ||
| Oil temperature | <90℃ | ||
| Stable regulating rate | 0～5 % adjustable | ||
| Cooling method | Horizontal radiator | ||
| Manufacturer | CNPC Jichai Power Co., Ltd | ||
| ain S pecification of Alternator | |||
| Model of alternator | 1FC series (siemens technology) | ||
| Rated power(kW) | 1000 | ||
| Rated voltage(V) | 400 | ||
| Coupling | Elastic | ||
| Voltage regulator | 3 phase sensing with volts/Hz. | ||
| Voltage regulat ion | Less than +/-0.5% in steady state and less than +/- 0.5% with 3% speed change. | ||||
| Rated frequency | 60Hz | ||||
| Power factor | COS ￠=0.8 | ||||
| Wiring mode | Three-phase four-wire system(Y) | ||||
| Excitation mode | Brushless excitation | ||||
| Insulation class | F | ||||
| Running mode | Continuous | ||||
| Protective class | IP23 | ||||
| Rotating direction | Anticlockwise(Facing to input end) | ||||
| TANDARD S COPE OF S UPPLY | |||||
Natural Gas Engine Air inlet system
Air Filter Air Cooler Bracket
Control system
Governor
Control Panel
Explosion Proof
Safety Protection System
Exhaust system
Exhaust Gas Turbocharger Exhaust M anifold
Corrugated Pipe Exhaust Pipe
Exhaust Elbow Exhaust Silencer
Cooling system
Horizontal Radiator
Starting S ystem
DC Starting M otor
Electric Starter 24 Volt
Lubricating S ystem
M ain Oil Pump Lube Oil Filter Lube Oil Cooler
Lube Oil Centrifugal Filter
Alternator
Brushless Excitation Alternator AVR(Digital M ode)
S pares
Normal Repair Tools Special Spare Parts Technical Document
Others
Common Skid Elastic Coupling
