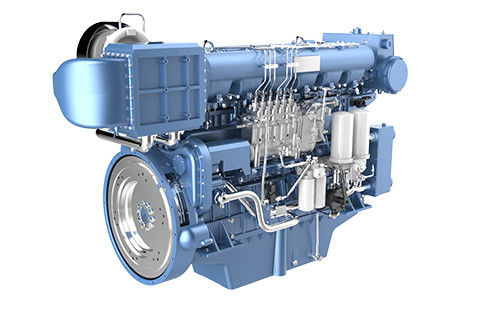

The X6170 and 8170 engine series are advanced, high-performance engines designed to meet diverse industrial and maritime power requirements. Combining durability, efficiency, and compliance with IMOⅡ/China I emissions standards, these engines are ideal for heavy-duty applications.

Core Features of X6170 and 8170 Engines

• Type: Four-stroke, water-cooled, inline, turbocharged, and intercooled
• Cylinder Count: 6 or 8
• Bore × Stroke: 170 mm × 200 mm
• Displacement:
  • X6170: 6-cylinder (27.24L), 8-cylinder (36.32L)
  • 8170: Optimized 8-cylinder design
• Lubricating Oil Consumption: ≤0.5 g/kW·h
• Noise Level: ≤105 dB(A)
• Starting Mode: Pneumatic/Electric
• Idle Speed: 450–650 r/min
• Crankshaft Rotation (Flywheel End): Counterclockwise

Specifications Overview

X6170 Engine

The X6170 is highly adaptable, offering configurations for speeds between 1000 and 1500 r/min with power outputs up to 601 kW/818 PS.

8170 Engine

The 8170 series builds on the X6170 platform with enhanced power options, reaching up to 735 kW/1000 PS at 1500 r/min.

Dimensions and Weight

Performance Highlights

1. Efficient Fuel Use: With a lubricating oil consumption rate of ≤0.5 g/kW·h, these engines deliver high efficiency.
2. Low Noise Operation: Noise levels are kept at ≤105 dB(A), ensuring a quieter work environment.
3. Turbocharged Intercooling: Boosts power output while maintaining operational reliability and efficiency.
4. Versatile Power Configurations: Available with mechanical pumps for consistent performance across varied speeds and loads.

Applications

The X6170 and 8170 engines are engineered for versatility and are ideal for:

• Marine Applications: Propulsion systems for commercial vessels.
• Power Generation: Reliable engines for industrial and remote power plants.
• Heavy Machinery: Engines for industrial equipment requiring robust, continuous operation.

Choosing the Right Engine

• For Moderate Power Needs: Opt for the X6170 series for configurations up to 601 kW/818 PS.
• For High Power Demands: Choose the 8170 series, capable of delivering 735 kW/1000 PS.

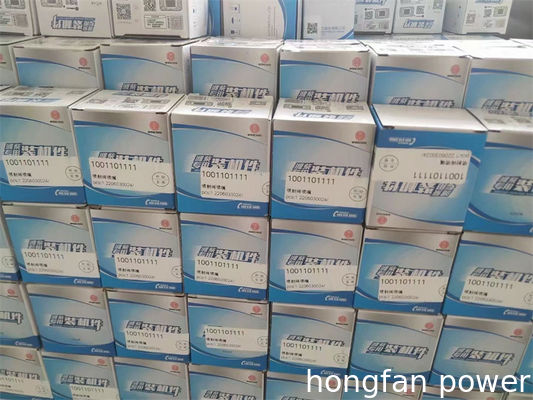

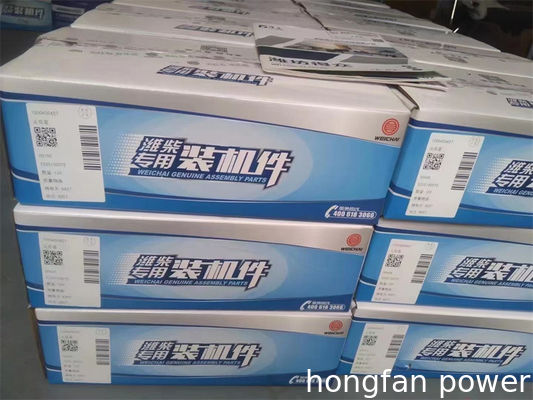

Essential Spare Parts List for X6170ZC300-1

Maintaining an inventory of spare parts is crucial for the long-term reliability of X6170ZC300-1 engines. Below is a detailed list of commonly used components:
