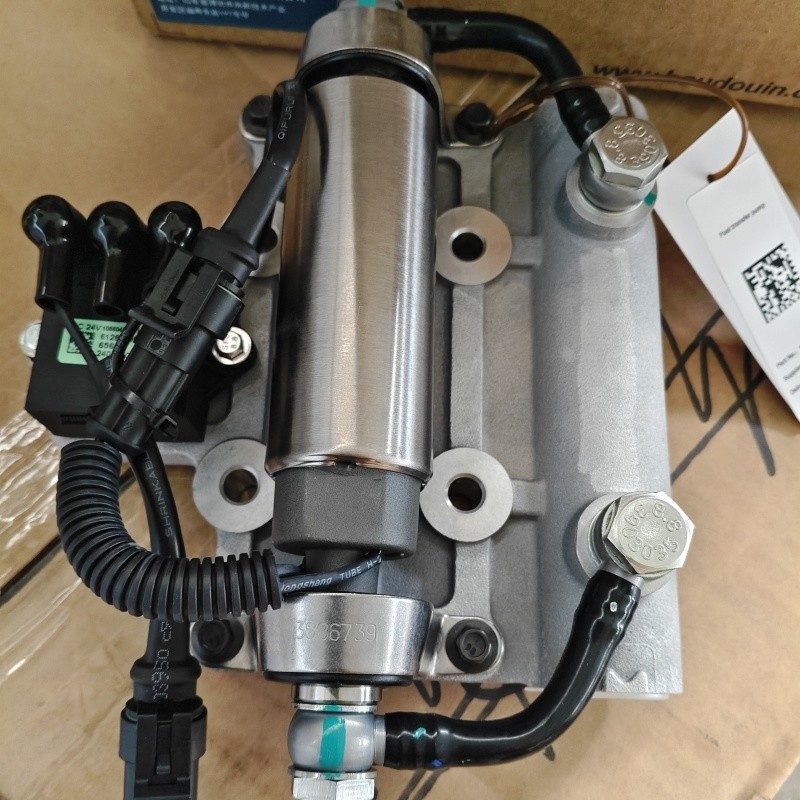

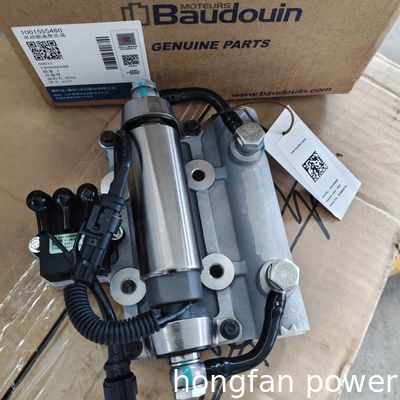

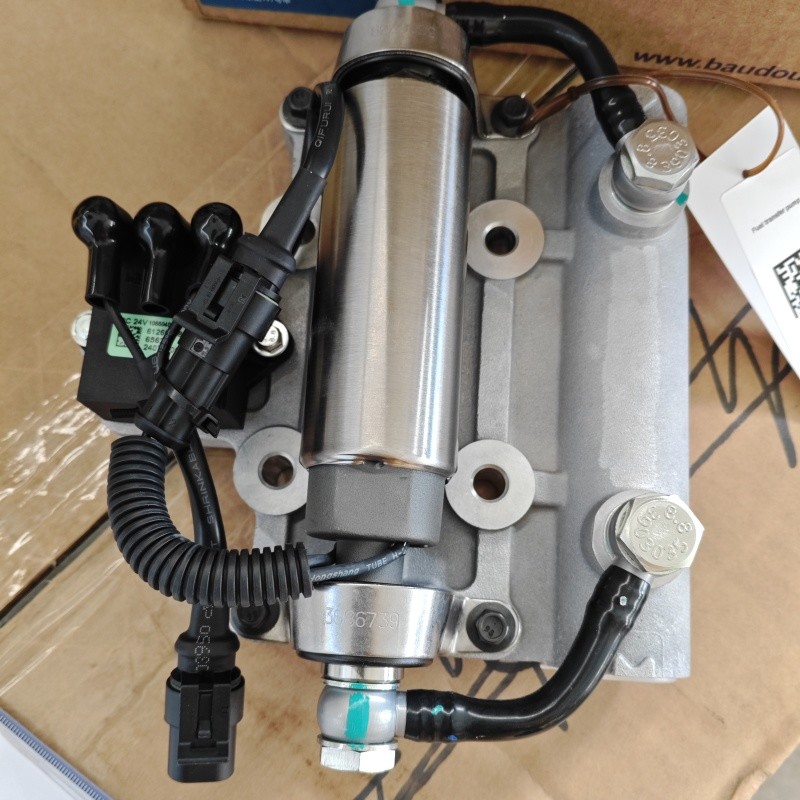

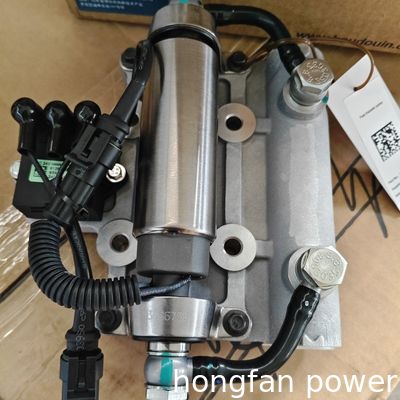

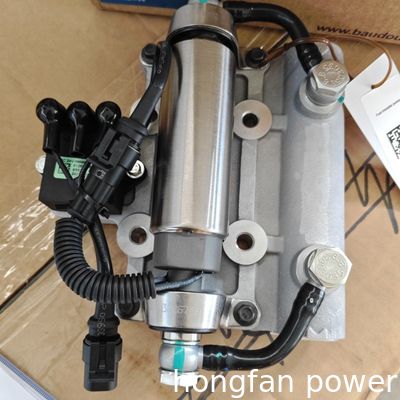

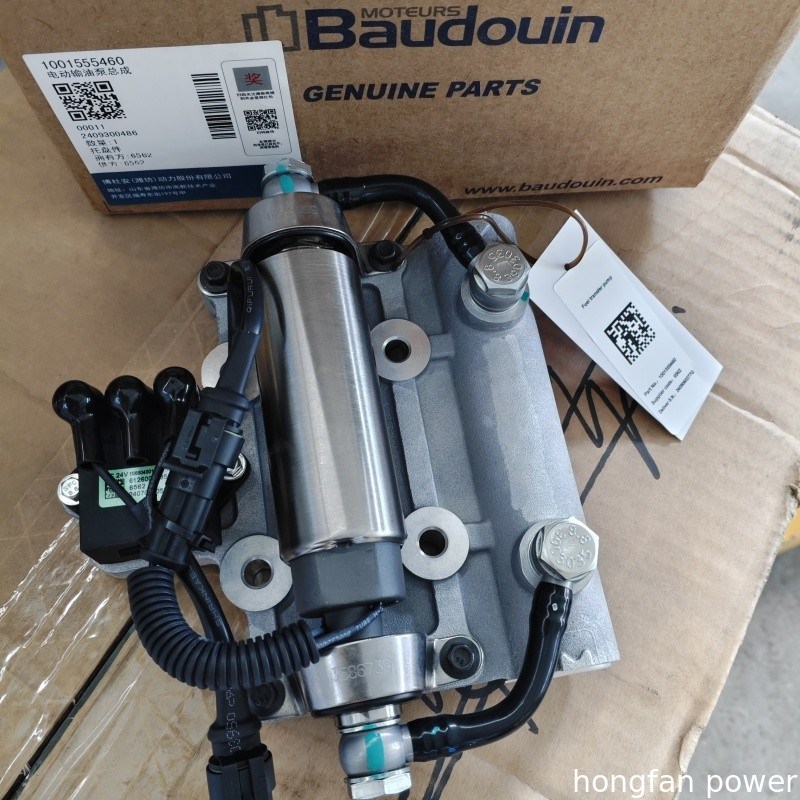

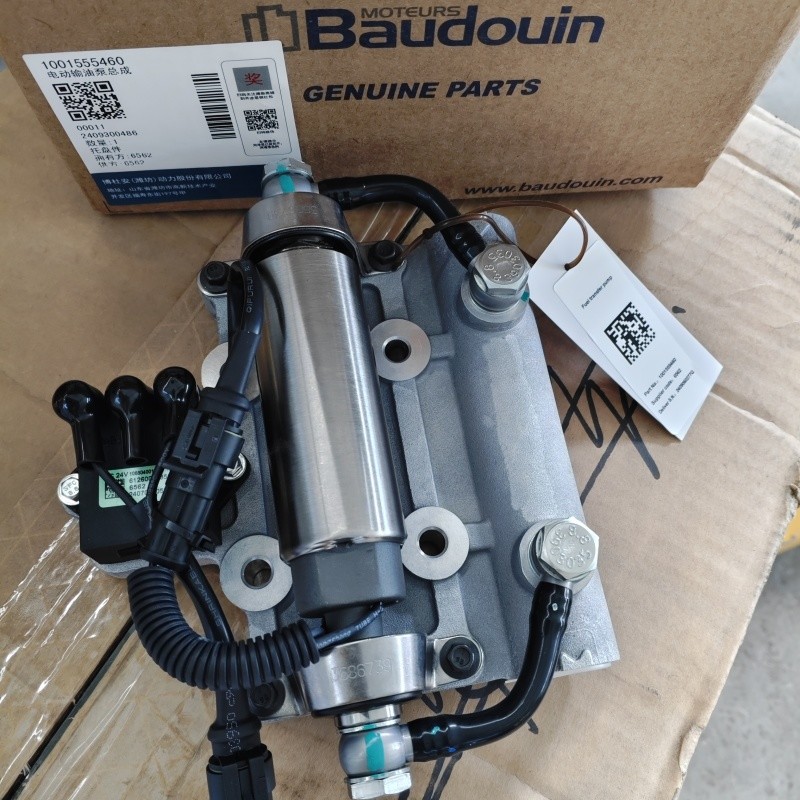

Weichai Baudouin 12M55 engine parts НАСОС ТОПЛИВНЫЙ 1001555460 Oil pump Cheap and fine
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
Veloz: 0086 18588475571
Skype: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
x| Color | Plata |
|---|
| Main Technical Parameters | 12M55 | ||||
| Product Series | 50Hz | 12M55D2210E310 | 12M55D2700E310 | 12M55D2420E311 | |
| Product Model | 60Hz | / | 12M55D2420E311 | 12M55D2700E311 | |
| Type | V-type, water-cooled, four-stroke | ||||
| Intake Mode | Turbocharged with intercooler | ||||
| Total Displacement (L) | 65.65 | ||||
| Cylinder Bore × Stroke (mm) | 12–180×215 | ||||
| Rated Power (kW) | 50Hz: 1985 60Hz: / | 2200 2200 |
2420 2450 |
||
| Standby Power (kW) | 50Hz: 2210 60Hz: / | 2450 2420 |
2700 2700 |
||
| Speed (r/min) | 1500/1800 | 380 | |||
| Oil Capacity (L) | 380 | ||||
| Oil Consumption Rate | ≤0.25% | ||||
| Starting Mode | Electric Start | ||||
| Control Mode | Electronic Common Rail | ||||
| Emission | China Non-Road Stage 3 | ||||
| Basic Model Dimensions (mm) | 3182×1539×2616 | ||||
| Purple Oil Clean Weight (kg) | 9550 | ||||
| Speed Regulation Feature | Meets G3 performance level | ||||
The Baudouin 12M55 (1985-2700kw) engine was developed by Weichai Power,is a high-performance diesel engine widely used in various heavy machinery, ships, and generator sets. As one of Baudouin's core engine models, the 12M55 series has gained widespread acclaim for its powerful output, reliable performance, and fuel efficiency.
12M55 PARTS LIST Requirement:
| № | Part Name (Russian) | Part Number | Part Name (English) |
|---|---|---|---|
| 1 | РЕМЕНЬ ВЕНТИЛЯТОРА 1004273763 | 1004273763 | Fan Belt |
| 2 | НАСОС ВОДЯНОЙ 1003807945 | 1003807945 | Water Pump |
| 3 | НАСОС ВОДЯНОЙ 1003849872 | 1003849872 | Water Pump |
| 4 | НАСОС ТОПЛИВНЫЙ 1005629985 | 1005629985 | Fuel Pump |
| 5 | ДАТЧИК ТОПЛИВА 1001736691 | 1001736691 | Fuel Sensor |
| 6 | НАСОС ТОПЛИВНЫЙ 1001555460 | 1001555460 | Fuel Pump |
| 7 | ФОРСУНКА ТОПЛИВНАЯ 331005001218 | 3.31005E+11 | Fuel Injector |
| 8 | СТАРТЕР 1001785542 | 1001785542 | Starter |
| 9 | ГЕНЕРАТОР 1000974264 | 1000974264 | Generator |
| 10 | РЕМЕНЬ ГЕНЕРАТОРА 612640060111 | 6.1264E+11 | Generator Belt |
| 11 | КОМПРЕССОР КОНДИЦИОНЕРА 1005540883 | 1005540883 | Air Conditioner Compressor |
| 12 | РОЛИК НАТЯЖНОЙ 1005249141 | 1005249141 | Tension Roller |
| 13 | МЕХАНИЗМ ОТБОРА МОЩНОСТИ 1003944189 | 1003944189 | Power Take-Off Mechanism |
| 14 | КОМПРЕССОР 1003235557 | 1003235557 | Compressor |
| 15 | КОМПРЕССОР 1003235555 | 1003235555 | Compressor |
| 16 | РЕМЕНЬ ВЕНТИЛЯТОРА 1004273762 | 1004273762 | Fan Belt |
| 17 | РЕМЕНЬ ГИДРОМУФТЫ 1003784055 | 1003784055 | Hydraulic Coupling Belt |
| 18 | РЕМЕНЬ 1006312429 | 1006312429 | Belt |
![]()
Shandong Hongfan Power Technology Co., Ltd, located in the scenic city of Jinan, Shandong Province, is a rapidly growing enterprise in green energy and high-tech solutions. The company specializes in the production, sales, and technical services for diesel and gas generator sets and their parts, focusing on renowned domestic brands such as Jichai, Weichai, Shengdong, Zichai, and Sinotruk.
Our Strengths
Comprehensive Warehousing System
With two warehouses spanning over 2,000 square meters, the company ensures a fully stocked inventory of components, enabling quick response times and timely delivery to meet diverse customer needs.
Expert Technical Team
The company boasts a highly skilled technical team with over 15 key professionals experienced in engine assembly, generator set installation and commissioning, maintenance, and power station operations. The team is adept at executing medium and major repairs and on-site operations both domestically and internationally.
Product Offerings
-
Jinan Diesel Engine: Jichai 190 series, 6190, 8190, 12V190, 16V190 diesel and gas engine.
-
Shengdong Gas Generator: 500kW, 700kW gas generators.
-
Weichai Engines: 6170Z, 8170Z, CW6200, CW8200, R6160Z, WP12, and WP series.
-
Weichai Baudouin Series: 6M26, 6M33, 12M26, 12M33, 16M33, 12M55, M26, M33, M55 Series.
-
Zichai Engines: Z6170, Z8170, 6210, 8210, LB8250, LC8250, ZC6200, Z6180, Z8180, Z6150, 6300, 8300.
-
Generator Sets: (20-2000KW) from leading domestic brands such as Jichai, Shengdong, Zichai, and Yuchai.
-
Maintenance Services: Maintenance and repair services for 190 series engines.
-
Power Station Services: Operation and maintenance services.
Organizational Structure
Marketing Department
-
Domestic Market: The domestic segment caters to industries such as mining, oil drilling, marine engines, and emergency power supply.
-
International Market: The company operates in regions like Africa, Asia, the Americas, and the Middle East, maintaining stable partnerships with clients from countries such as Russia, Kazakhstan, Indonesia, Malaysia, Bangladesh, the Philippines, Thailand, Chile, Ecuador, Brazil, Libya, Nigeria, and Greece.
Procurement Department
Focused on strategic planning and execution based on sales contracts, ensuring seamless supply chain operations.
Warehousing Department
Handles inventory management, logistics, and export packaging.
Technical Department
Conducts quality inspections, engine assembly, and medium-to-major repairs.
Success Stories
The company has successfully completed various projects, showcasing its expertise and commitment to quality.
![]()
Commitment to Excellence
Shandong Hongfan Power Technology Co., Ltd. is committed to delivering high-quality products and reliable services with integrity and innovation. The company has earned widespread acclaim and loyalty from customers through continuous improvement and exceptional service.
